Permanent Magnet Synchronous Motor

Permanent Magnet Synchronous Motor

Our motor advantages

High-precision silent bearings

All-copper motors

High-quality silicon steel sheets

High heat dissipation efficiency

市场价： 0.00

价格： 0.00

Our motor advantages

High-precision silent bearings

All-copper motors

High-quality silicon steel sheets

High heat dissipation efficiency

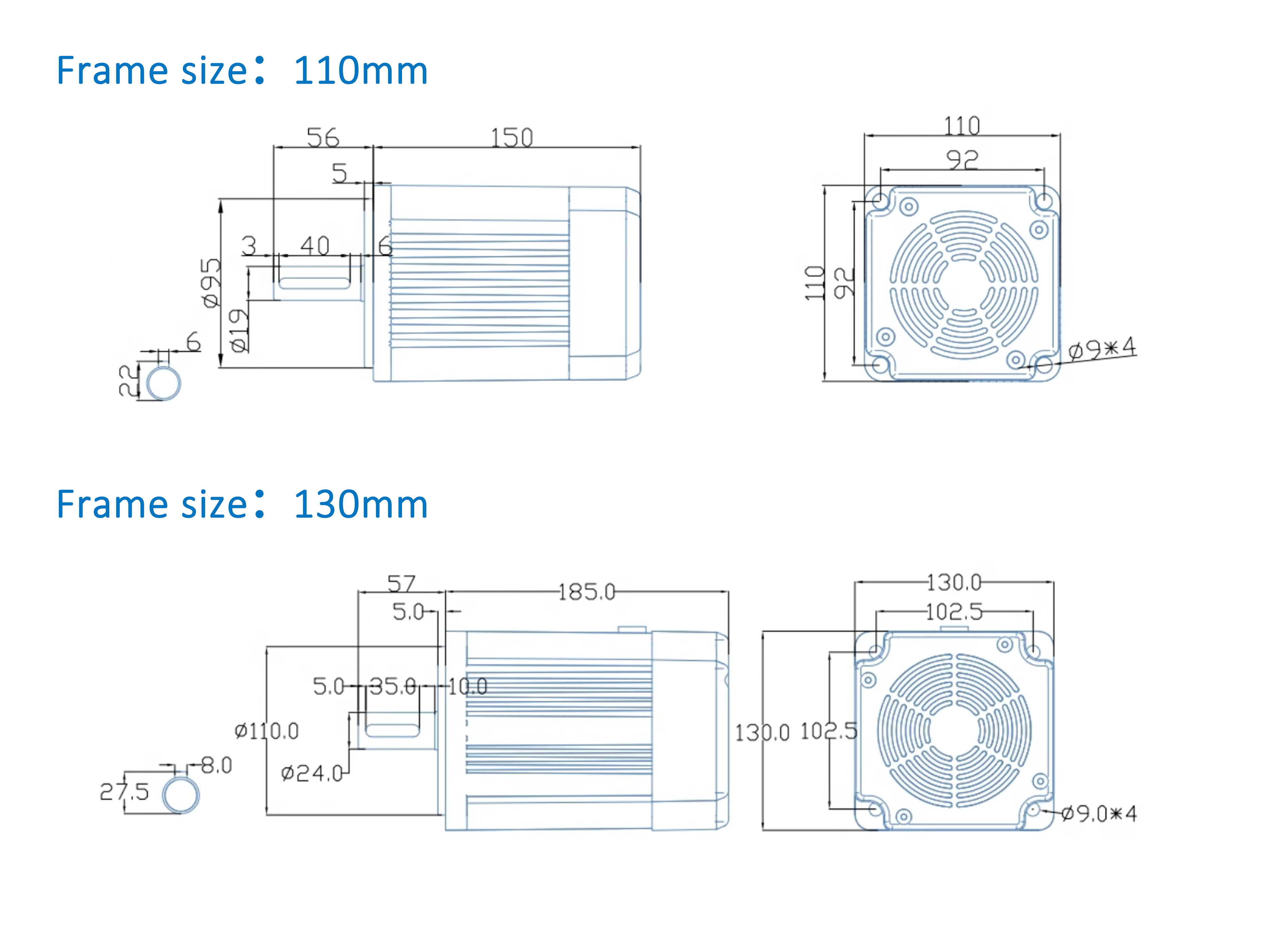

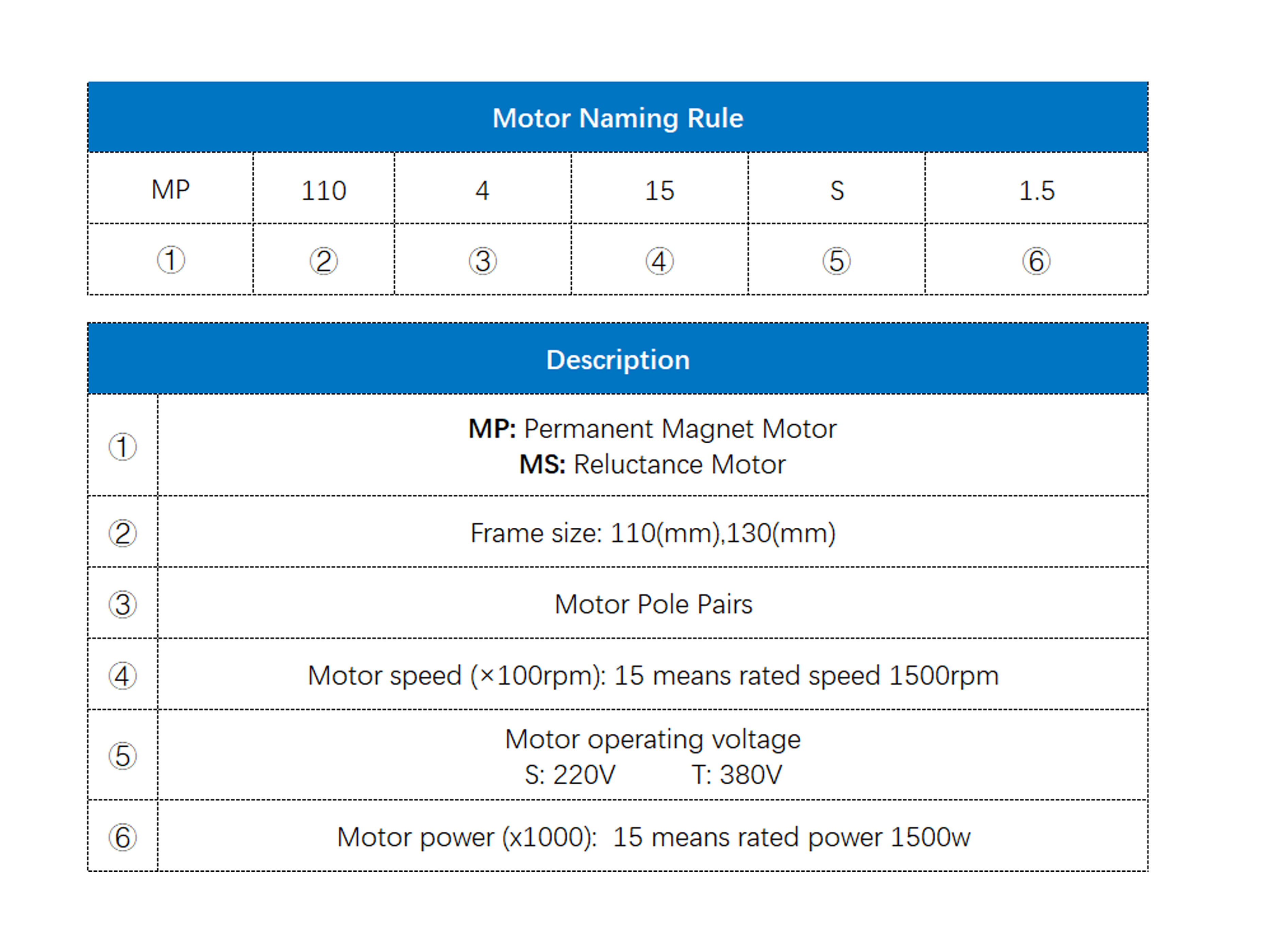

No	Model	Dimension (mm)	Rated Voltage （V）	Rated Power （Kw）	Rated Speed （RPM）	Rated Torque (N.m)	Rated Current （A）	Rated Frequency (Hz)	Efficiency (%)	Energy Efficiency Level	Poles （Pairs)	Insulation Class
1)	MP110-4-15S0.37	110	220	0.37	1500	2.36	1.13	100	85.6	IE5	4	F
2)	MP110-4-15T0.37	110	380	0.37	1500	2.36	0.66	100	85.6	IE5	4	F
3)	MP110-4-30S0.37	110	220	0.37	3000	1.18	1.11	200	87.3	IE5	4	F
4)	MP110-4-30T0.37	110	380	0.37	3000	1.18	0.64	200	87.3	IE5	4	F
5)	MP110-4-15S0.55	110	220	0.55	1500	3.5	1.69	100	85.6	IE5	4	F
6)	MP110-4-15T0.55	110	380	0.55	1500	3.5	0.98	100	85.6	IE5	4	F
7)	MP110-4-30S0.55	110	220	0.55	3000	1.75	1.65	200	87.3	IE5	4	F
8)	MP110-4-30T0.55	110	380	0.55	3000	1.75	0.96	200	87.3	IE5	4	F
9)	MP110-4-15S0.75	110	220	0.75	1500	4.78	2.3	100	85.6	IE5	4	F
10)	MP110-4-15T0.75	110	380	0.75	1500	4.78	1.33	100	85.6	IE5	4	F
11)	MP110-4-30S0.75	110	220	0.75	3000	2.39	2.22	200	88.6	IE5	4	F
12)	MP110-4-30T0.75	110	380	0.75	3000	2.39	1.29	200	88.6	IE5	4	F
13)	MP110-4-30S1.1	110	220	1.1	3000	3.5	3.21	200	89.8	IE5	4	F
14)	MP110-4-30T1.1	110	380	1.1	3000	3.5	1.86	200	89.8	IE5	4	F
15)	MP110-4-30S1.5	110	220	1.5	3000	4.78	4.33	200	90.9	IE5	4	F
16)	MP110-4-30T1.5	110	380	1.5	3000	4.78	2.51	200	90.9	IE5	4	F
17)	MP130-4-15S1.5	130	220	1.5	1500	9.55	4.47	100	88.1	IE5	4	F
18)	MP130-4-15T1.5	130	380	1.5	1500	9.55	2.59	100	88.1	IE5	4	F
19)	MP130-4-30S1.5	130	220	1.5	3000	4.78	4.33	200	90.9	IE5	4	F
20)	MP130-4-30T1.5	130	380	1.5	3000	4.78	2.51	200	90.9	IE5	4	F
21)	MP130-4-15S2.2	130	220	2.2	1500	14.01	6.44	100	89.7	IE5	4	F
22)	MP130-4-15T2.2	130	380	2.2	1500	14.01	3.73	100	89.7	IE5	4	F
23)	MP130-4-30S2.2	130	220	2.2	3000	7	6.28	200	92	IE5	4	F
24)	MP130-4-30T2.2	130	380	2.2	3000	7	3.63	200	92	IE5	4	F
