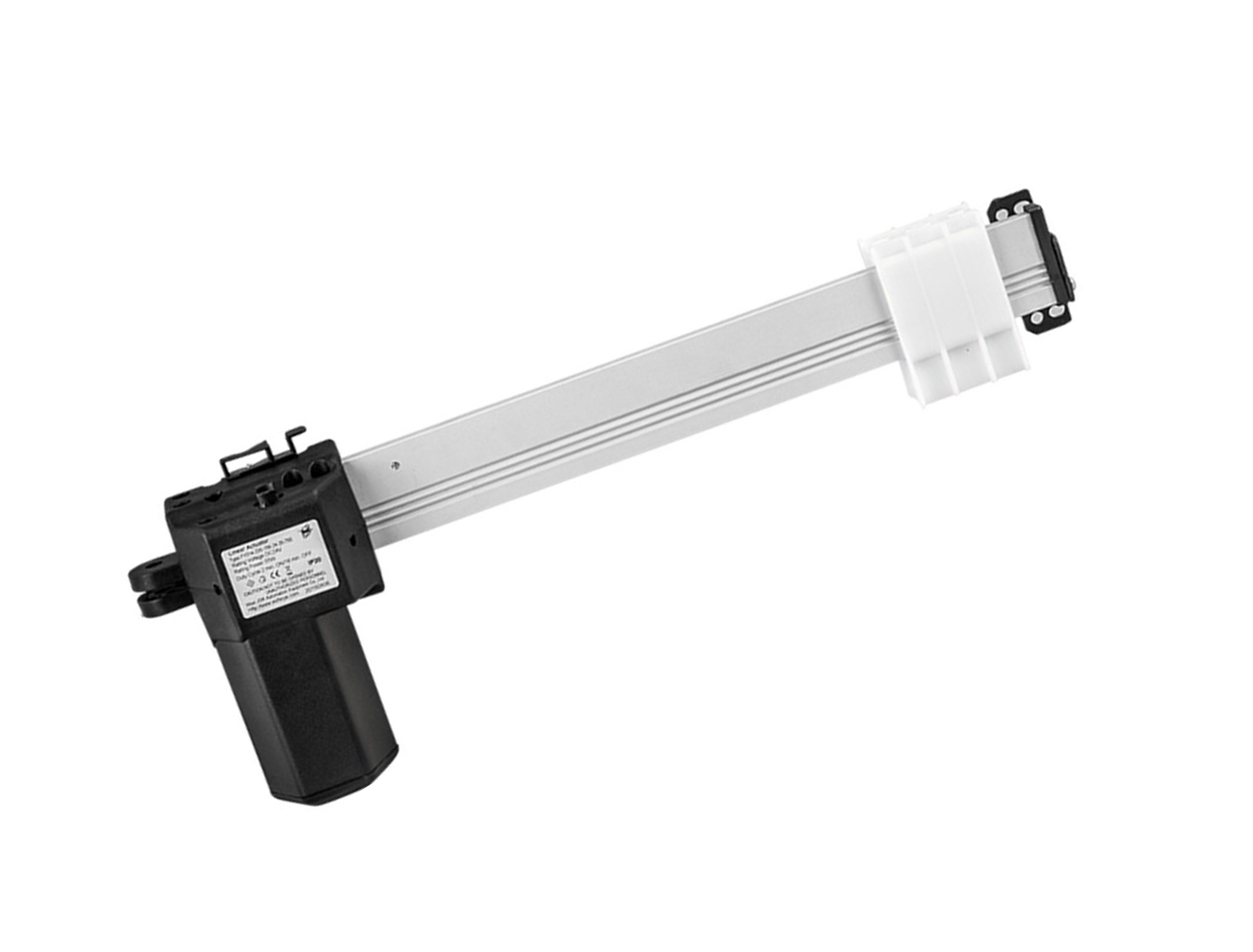

DN014 Linear Actuator

DN014 Linear Actuator

Specifications

   1. Input voltage: 24V/12V DC

   2. Load capacity: 4000N

   3. Speed: 18mm/s(1500N), 35mm/s(750N)

   4. Stroke: Customize

   5. Type of duty: 10%, 2min. on / 18min. off

   6. Limit switches: Inner

   7. Operation temperature: -15℃ ~ 45℃

   8. Protection class: IP20


0.00
0.00


Specifications

   1. Input voltage: 24V/12V DC

   2. Load capacity: 4000N

   3. Speed: 18mm/s(1500N), 35mm/s(750N)

   4. Stroke: Customize

   5. Type of duty: 10%, 2min. on / 18min. off

   6. Limit switches: Inner

   7. Operation temperature: -15℃ ~ 45℃

   8. Protection class: IP20


Specifications

   1. Input voltage: 24V/12V DC

   2. Load capacity: 4000N

   3. Speed: 18mm/s(1500N), 35mm/s(750N)

   4. Stroke: Customize

   5. Type of duty: 10%, 2min. on / 18min. off

   6. Limit switches: Inner

   7. Operation temperature: -15℃ ~ 45℃

   8. Protection class: IP20
