Home >> Linear Actuator >> DN020 Linear Actuator

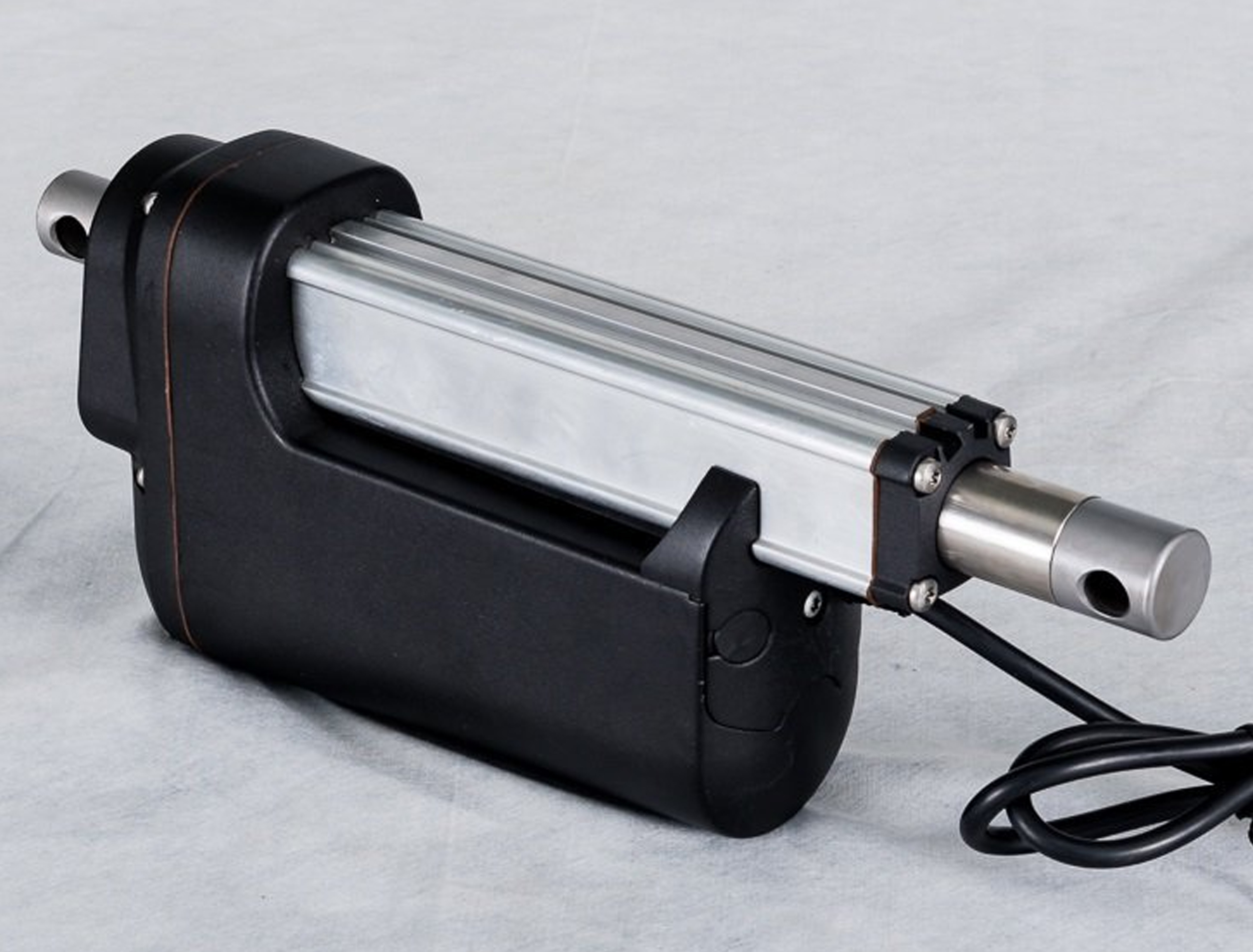

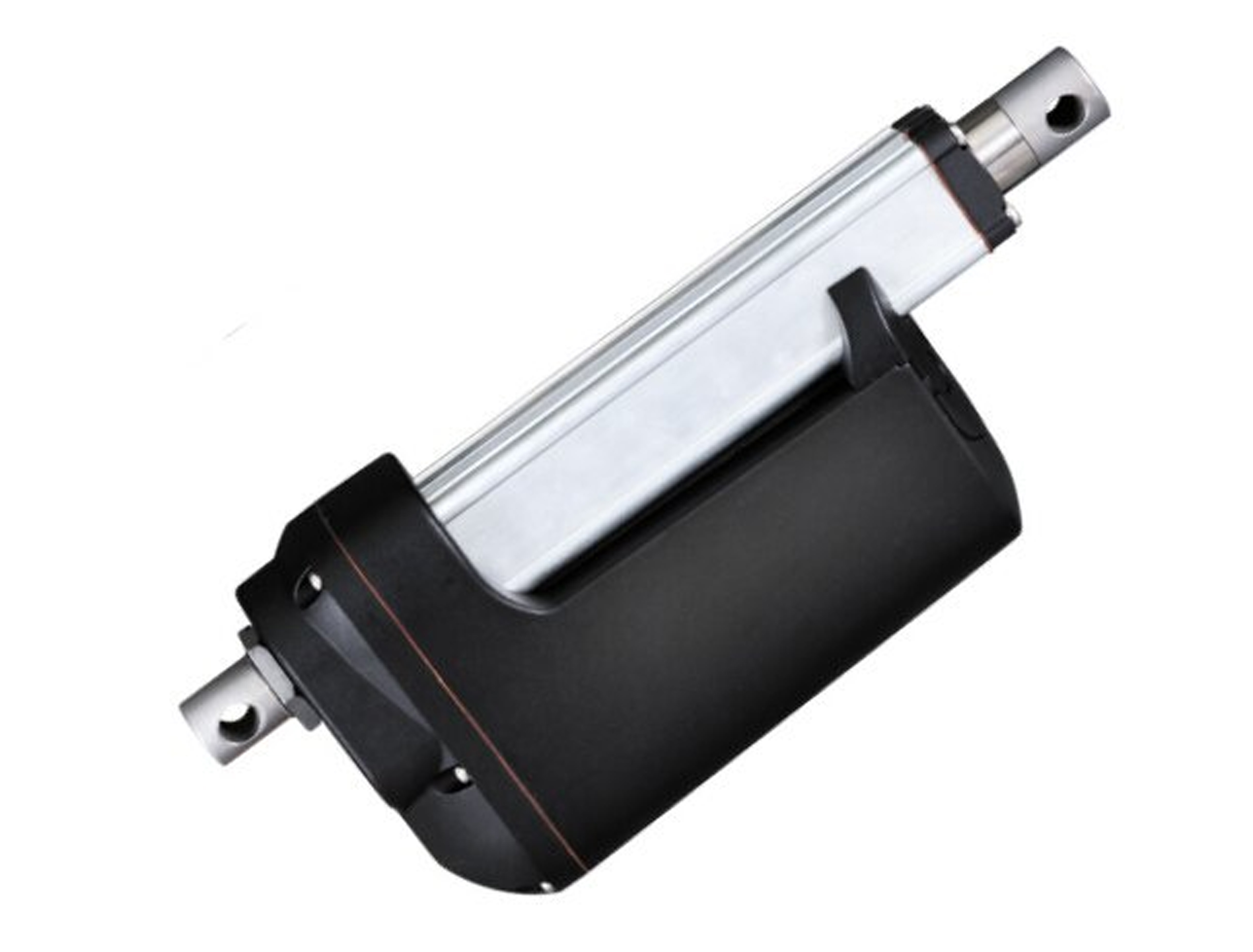

DN020 Linear Actuator

DN020 Linear Actuator

Specifications

   1. Input voltage: 72V / 48V / 36V / 24V / 12V DC

   2. Load capacity: 12000N

   3. Speed: 5~60mm/s

   4. Stroke: Customize

   5. Type of duty: 10%, 2min. on / 18min. off

   6. Limit switches: Inner

   7. Operation temperature: -15℃ ~ 65℃

   8. Protection class: IP66



0.00
0.00


Specifications

   1. Input voltage: 72V / 48V / 36V / 24V / 12V DC

   2. Load capacity: 12000N

   3. Speed: 5~60mm/s

   4. Stroke: Customize

   5. Type of duty: 10%, 2min. on / 18min. off

   6. Limit switches: Inner

   7. Operation temperature: -15℃ ~ 65℃

   8. Protection class: IP66



Specifications

   1. Input voltage: 72V / 48V / 36V / 24V / 12V DC

   2. Load capacity: 12000N

   3. Speed: 5~60mm/s

   4. Stroke: Customize

   5. Type of duty: 10%, 2min. on / 18min. off

   6. Limit switches: Inner

   7. Operation temperature: -15℃ ~ 65℃

   8. Protection class: IP66
